FANUC A06B-0265-B100

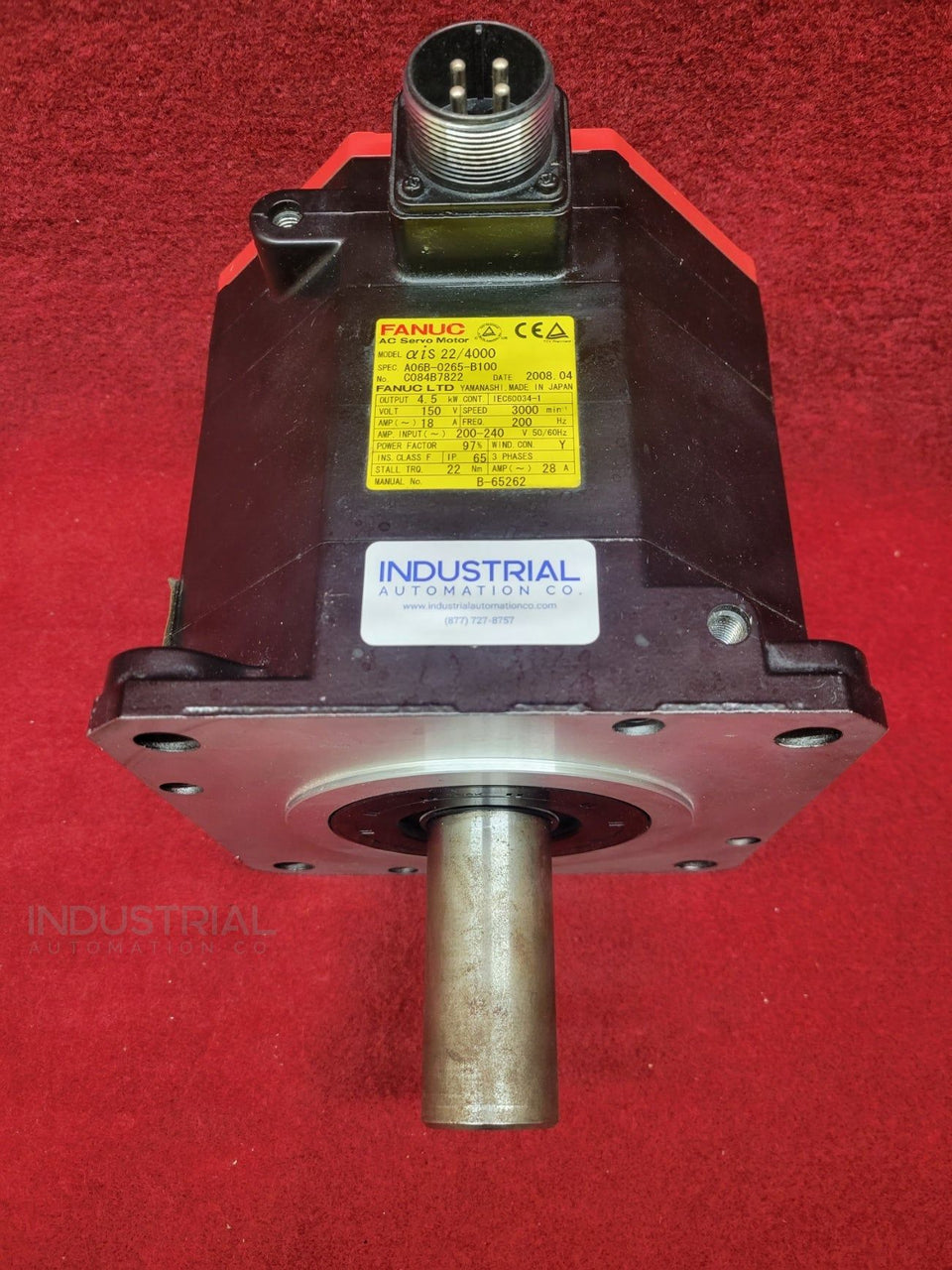

This FANUC AC servo motor A06B-0265-B100 offers a unique combination of high-speed and precision accuracy, perfect for powering the feed axis of any machine tool - from large to small.

The model A06B-0265-B100 has been upgraded with a new magnetic pole shape, which creates an incredibly smooth rotation by significantly reducing torque ripple.

With a back EMF constant of 28 V/1000 min-1 and torque constant of 0.79 Nm/A, this model A06B-0265-B100 guarantees unbeatable waterproofing with its use of FANUC's unique stator seal coupled with waterproof connectors - effectively blocking any liquid such as coolant from entering the motor interior.

The model A06B-0265-B100 has an impressive thermal time constant of 30 minutes, making it rapid and efficient. With a mechanical time constant of just 0.002 seconds, these results are more than extraordinary. Weighing in at 17 kgs with static friction rated up to 0.8 Nm., this dynamic engineering marvel will manage any application.

The motor A06B-0265-B100 produces a robust 4.5 kW power output while using minimal energy resources. A thermal monitoring system ensures the motor's temperature remains stable to protect against sudden current increases within its operational circuits.

The FANUC motor A06B-0265-B100 is equipped with a powerful 76 Nm maximum torque and 0.0052 kgm2 moments of inertia to ensure reliable performance at up to 4000 revolutions per minute, mitigated by the armature resistance of 0.075 ohms for increased efficiency in operation.

The model A06B-0265-B100 provides an impressive 22 Nm of stall torque while using only a mere 27.9 A current draw, ensuring powerful performance with minimal resource consumption. And don't worry about dust or liquid damage - its IP65 rating grants it superior protection against both.

The AC servo motor has an insulation class of F, and a tapered shaft with an oil seal which helps to protect the motor from foreign matter, including lubricants.

The A06B-0265-B100 motor's performance is remarkable, boasting a rated speed of 3000 revolutions per minute and a frequency of 200 Hz. Moreover, it has high-resolution pulse coding capabilities to ensure precise positioning accuracy.

The 3-phase voltage supply of the motor has been optimized to run effectively between 200 and 230 V while maintaining a frequency of 50/60 Hz. Maximum output torque remains uncompromised despite an impressive reduction in rotor inertia, granting superior acceleration performance.

You can successfully initialize the motor without extra attention at elevations up to 1000 meters. Should it rise higher than that, however, operators must consider a decrease in ambient temperature by one °C for every 100-meter increase above sea level, as this could affect its effectiveness.

The ideal operating temperature for the motor is -10 to 40°C. To ensure optimal performance, reduce output power if temperatures exceed the set constant value.

Protect the motor A06B-0265-B100 by storing it in a dry, temperature-controlled environment. To ensure optimal workability of the components over time, keep the shaft horizontal and point the terminal box upwards.

Before using the A06B-0265-B100 motor, it is essential to assess its winding and insulation resistances for quality assurance. It becomes even more pertinent if the device has been kept in storage for longer, as deterioration may have occurred due to environmental factors or time elapsed.
