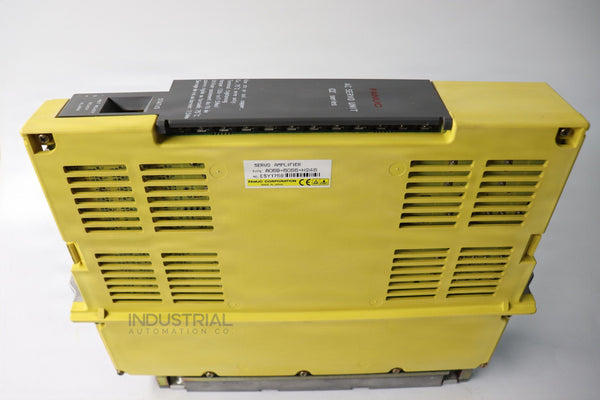

FANUC A06B-6066-H246

This AC servo drive A06B-6066-H246 provides a professional-grade solution for an extensive range of industrial applications. Its cutting-edge design has become the go-to choice for businesses needing reliable, high-performance motion control systems with accurate results.

The servo amplifier A06B-6066-H246 features LED indicators on its printed circuit boards, providing quick and easy diagnostics for potential issues. Checking the indicator lights facilitates fast troubleshooting, enabling the immediate detection of problems.

With its user-friendly interface, this drive A06B-6066-H246 allows for a hassle-free setup and simple operation. The advanced features offer superior accuracy alongside reliable repeatability for greater productivity in motion control applications.

The model offers dependable functionality in the most arduous of applications with a 13.2A input current at its rated load capacity.

This advanced AC servo drive A06B-6066-H246 provides a powerful and efficient solution for precisely controlling rotational speed and torque. The device is optimized for 50-60 Hz voltage with a +/- 1 tolerance, ensuring optimal performance within specific parameters.

The A06B-6066-H246 model has a nominal voltage of 200/220/230 V AC for 3-phase power and is kept at the optimal temperature using an advanced fan motor with adjustable wind speed.

To ensure uninterrupted operation with the highest load rating, a power source must be selected which provides an output of at least 179 V and 14.7 A when measured at 100 Hz to avoid potential voltage drops.

To ensure optimal performance and longevity, the model A06B-6066-H246 must be installed up to 1,000 meters above sea level. When operating at greater altitudes, adjust cooling slightly every 100 m to improve output as temperatures naturally decrease by one °C with increased altitude.

The AC servo drive A06B-6066-H246 must be kept in an indoor environment between -20°C and +60 °C, free from dust or other particulates. To prevent corrosion over time, avoid exposing it to direct sunlight.

To ensure optimal performance and reliability, it is important to operate the A06B-6066-H246 model at an environmental temperature between 0 - 40°C. To keep the internal motor temperature within its specified limits, you must reduce the output power accordingly if operating at higher temperatures.

An alarm may sound during parameter setting to request the turning off of power; however, you should only adjust parameters once you have completed all settings - no need for premature shut-off.

For safety and accuracy, the system must remain in its emergency stop state when parameters are adjusted. In this mode, you can alter values on the menu; any internal data changes cannot take effect until exiting Excitation State to apply newly-set parameter values.

To ensure the accuracy of a closed loop system, users should initially test it in semi-closed mode by using a pulse coder installed on their motor. It will help to verify the operation before making any major changes.

Properly pairing the servo amplifier and the motor is essential to maintain optimal system performance. Incorrect connections can cause severe malfunctions like unwanted vibration, ultimately leading to failure.

By employing single-wire grounding (S phase) for an AC servo motor and amplifier, it is approximated that the commercial frequency component of leakage current would be around one mA. However, a greater value could arise depending on the measuring instrument employed during an inspection.
