FANUC A06B-6114-H210
SKU: A06B-6114-H210-R
Low stock
Estimated delivery: October 14th - October 16th
Order for next-day shipment.
- Regular price
- $1,297.00
- Sale price
- $1,297.00
IAC Certified Refurbished
$1,297
Low stock
Ships today
Description

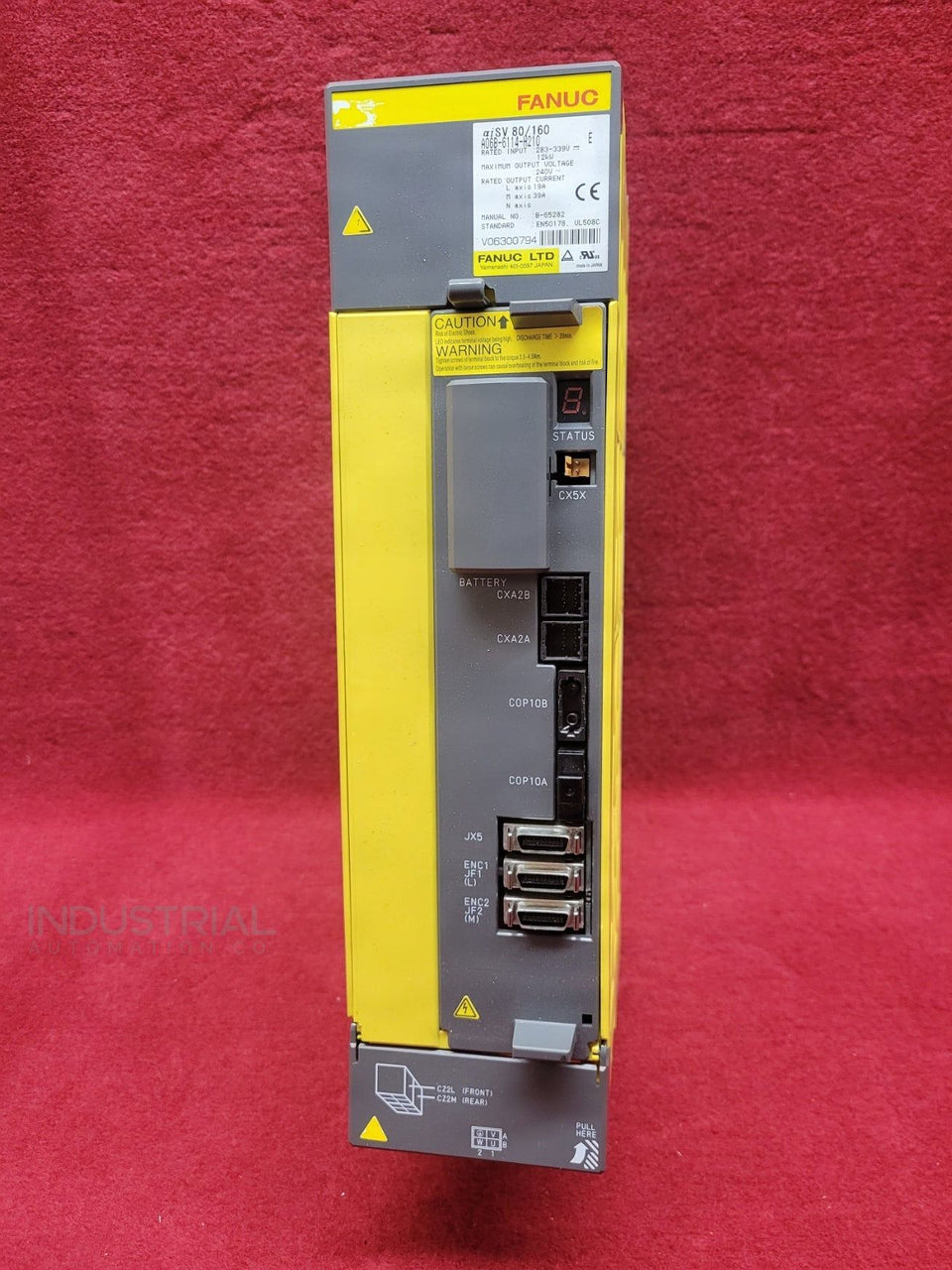

The FANUC A06B-6114-H210 is a Alpha i series servo amplifier module (SVM), model SVM2-80/160i. It is part of FANUC's modular Alpha i drive system, where it runs from the common DC link supplied by the PSM power supply module and drives Alpha i series AC servo motors on CNC machine tool and robot axes.
It pairs an 80 amp class axis with a 160 amp class axis in one housing and carries a rated input of 12 kW from the DC link. This part number has been discontinued by the manufacturer and is supplied from existing distributor stock as a direct replacement for units already in service. $150 core credit available.
Technical Specifications
| Part Number | A06B-6114-H210 |
| Manufacturer | FANUC |
| Series | FANUC Alpha i servo amplifier module |
| Model | SVM2-80/160i |
| Axes | 2 |
| Interface | FSSB (FANUC Serial Servo Bus, fiber optic) |
| Rated input | 12 kW, 283-325 VDC link |
| Maximum output voltage | 240 VAC |
| Motor type | Alpha i series AC servo motors |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $195/yr+3 yrs → 5 total $173/yr+5 yrs → 7 total $130/yrBEST VALUE+8 yrs → 10 total $97/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The FANUC A06B-6114-H210 is a Alpha i series servo amplifier module (SVM), model SVM2-80/160i. It is part of FANUC's modular Alpha i drive system, where it runs from the common DC link supplied by the PSM power supply module and drives Alpha i series AC servo motors on CNC machine tool and robot axes.
It pairs an 80 amp class axis with a 160 amp class axis in one housing and carries a rated input of 12 kW from the DC link. This part number has been discontinued by the manufacturer and is supplied from existing distributor stock as a direct replacement for units already in service. $150 core credit available.
Technical Specifications
Part Number A06B-6114-H210 Manufacturer FANUC Series FANUC Alpha i servo amplifier module Model SVM2-80/160i Axes 2 Interface FSSB (FANUC Serial Servo Bus, fiber optic) Rated input 12 kW, 283-325 VDC link Maximum output voltage 240 VAC Motor type Alpha i series AC servo motors -
