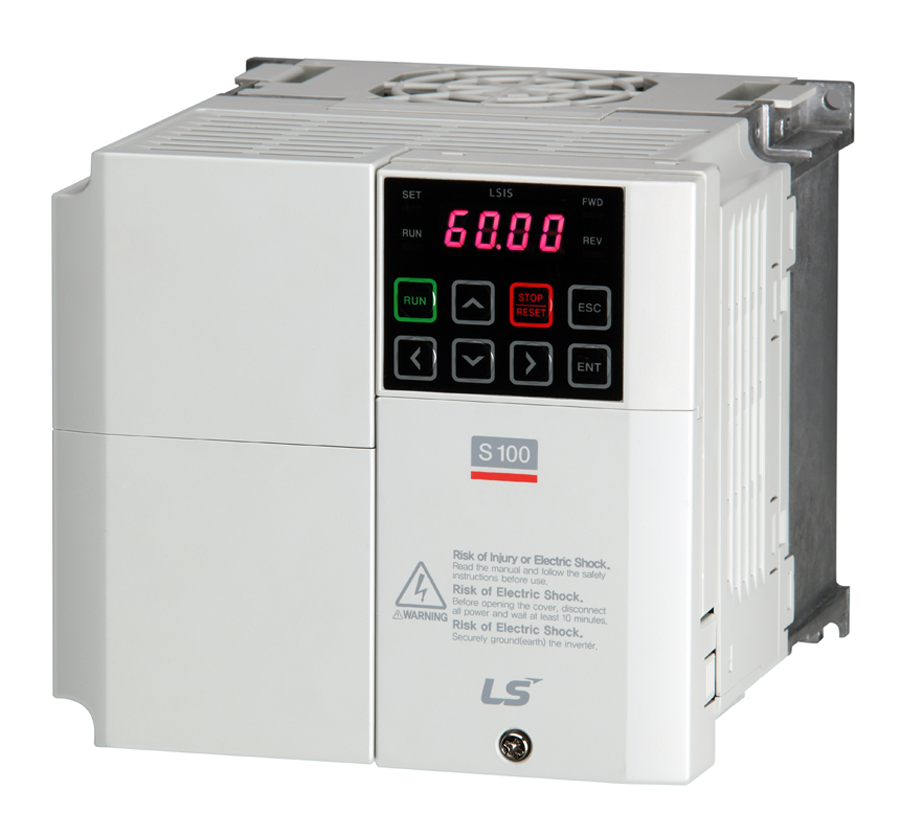

LS Electric LSLV0040S100-4EONNS

VFD, 5.4hp, 380-480VAC, 3 Phase, 9A, IP20, No EMC Filter, No DC Reactor, 5.51x5.04x5.71"

The S100 series represents a versatile industrial drive, offering both V/F and sensorless vector control, covering a power range from 1/2 to 100 hp. It is adept for both constant torque and variable torque applications, showcasing its dual-rating capability.

Key advancements in the S100 series encompass features like power loss ride-through and STO (Safe Torque Off) relay, alongside PID control for precise process management. It also supports various communication protocols, enhancing its connectivity and integration capabilities.

A notable design aspect of the S100 series is its heatsink positioned at the back, also known as flange mount, facilitating external heatsink attachment. This design choice is crucial as it forms a NEMA 12 dust-tight enclosure by placing the heat dissipation externally, potentially reducing or eliminating the need for air conditioning within the enclosure.

Additionally, the S100 series offers models enclosed in NEMA 4X housings, available for power capacities ranging from 1/2 to 30 hp, ensuring enhanced protection in harsh environments.
