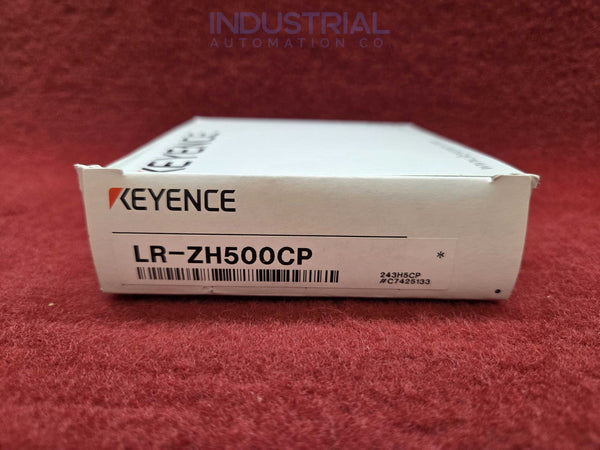

Keyence LR-ZH500CP
SKU: LR-ZH500CP-FS
We have 1 in stock
Estimated delivery: April 5th - April 7th
Order for next-day shipment.
- Regular price
-
$491.00
- Sale price
- $491.00
New
$491
1 in stock
Ships today
New Surplus
$377
2 in stock
Ships today
Description
The Keyence LR-ZH500CP is a robust CMOS laser sensor designed for extended-range detection up to 500mm within a heavy-duty SUS316L stainless steel housing. Unlike the 3-pin variant, this standard "CP" model utilizes a 4-pin M8 connector that preserves the external input functionality, allowing operators to perform remote teaching, laser stops, or zero shifts directly via PLC control. Its distance-based detection algorithm ensures stability on any target color, while the Universal Change Detection mode ignores distance to spot sudden irregularities like falling parts. With an IP69K rating and PNP output, it offers a versatile, durable solution for complex automation environments requiring remote manageability.
- LASER SENSOR
- 35-500 MM DETECTABLE DISTANCE
- PNP
- 10-30 VDC
- 100 MA
- 450 MW
- RECTANGULAR
- SELF CONTAINED
- 4-PIN M8 CONNECTOR
- IP68
-
Buying Options
-
Description
The Keyence LR-ZH500CP is a robust CMOS laser sensor designed for extended-range detection up to 500mm within a heavy-duty SUS316L stainless steel housing. Unlike the 3-pin variant, this standard "CP" model utilizes a 4-pin M8 connector that preserves the external input functionality, allowing operators to perform remote teaching, laser stops, or zero shifts directly via PLC control. Its distance-based detection algorithm ensures stability on any target color, while the Universal Change Detection mode ignores distance to spot sudden irregularities like falling parts. With an IP69K rating and PNP output, it offers a versatile, durable solution for complex automation environments requiring remote manageability.
- LASER SENSOR
- 35-500 MM DETECTABLE DISTANCE
- PNP
- 10-30 VDC
- 100 MA
- 450 MW
- RECTANGULAR
- SELF CONTAINED
- 4-PIN M8 CONNECTOR
- IP68
-
Specifications
Keyence LR-ZH500CP Reference Standard 4-Pin M8Keyence
LR-ZH500CPThe "CP" model is the versatile standard. It combines the massive 500mm range of the LR-Z series with a standard 4-Pin M8 connector. Unlike the 3-pin variant, this model retains the External Input (White Wire), enabling remote teaching, laser control, and automated changeovers.
500KEYENCELR-ZH500CPThe CP Advantage: Remote Control
The primary difference between the CP and C3P models is the inclusion of Pin 2 (White Wire). This External Input enables the sensor to be controlled by a PLC without physical button presses.
1234M8 Male (Face View)
Pin Wire Function 1 Brown +10-30 VDC 2 White External Input (Teach / Laser Off / Zero Shift) 3 Blue 0 V (Ground) 4 Black Control Output (PNP) Universal Change Detection (U.C.D.)
The LR-Z series features U.C.D. mode, which ignores the absolute distance and instead detects sudden changes in the reading. This allows for stable detection of clear objects, falling parts, or targets on a wobbling conveyor.
Ideal Applications
- Falling parts detection
- Clear bottle counting
- Missing cap detection
STABILITY DETECTEDTime →500mm Detection Range
0mm 250mm (Standard) 500mm (LR-Z)CMOS technology maintains detection stability regardless of color or angle across the entire 500mm range.
Technical Specifications
500mmMax RangePNPOutputIP69KRatingYesExt. InputResearch Reference: Keyence LR-ZH500CP Technical Manual -
