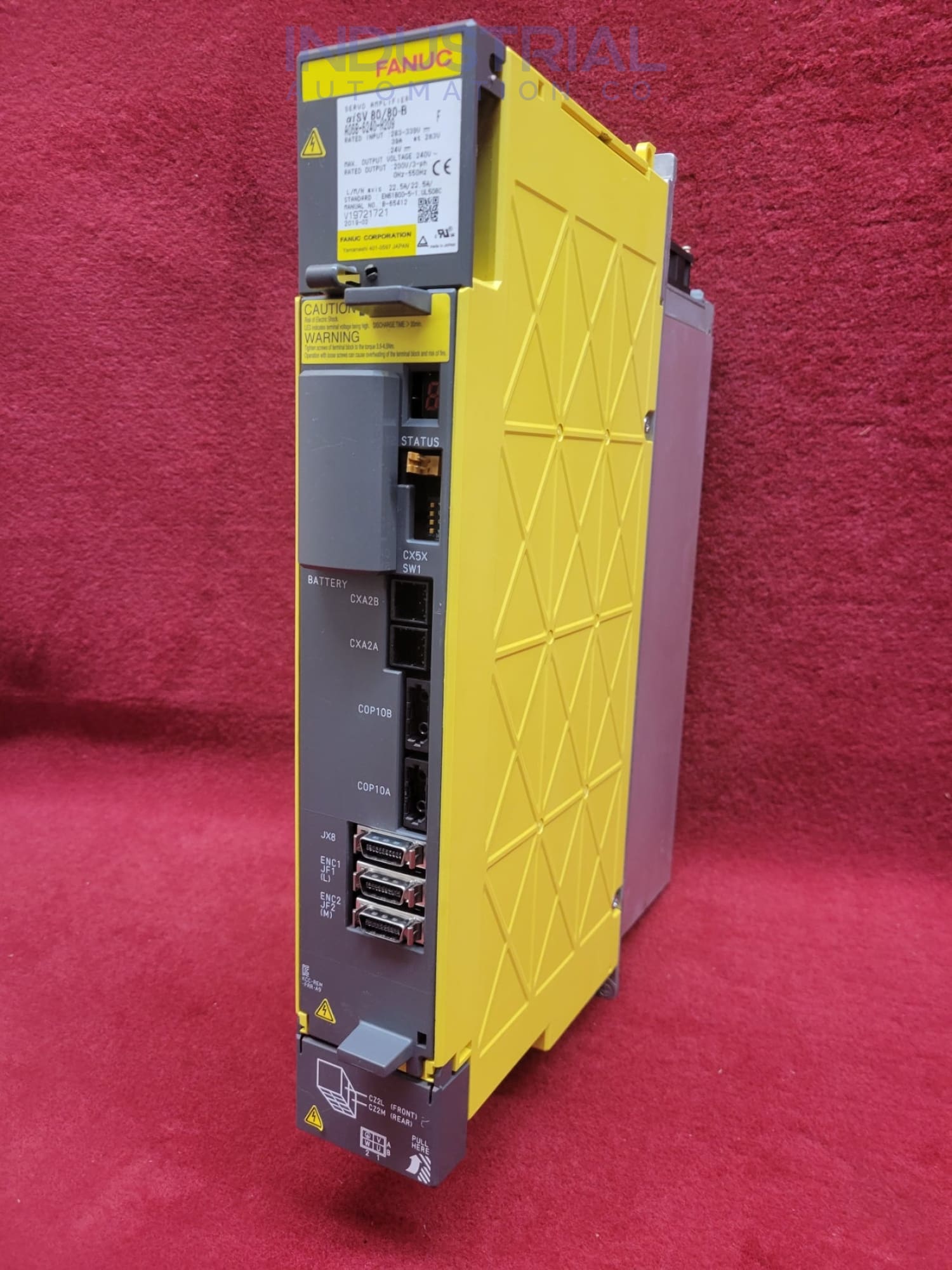

The FANUC A06B-6240-H209 is a modern servo amplifier manufactured by FANUC Company in Japan. It is part of the alpha iSV family and is famous for its high precision and efficiency. This amplifier stands out for its advanced technology, energy-saving features, and ability to work with different FANUC motors. The high accuracy and safety features make it an ideal choice for improving productivity in various operations. The servo amplifier can help boost operational efficiency using its efficient design and distinctive features.

Technical Specifications:

The FANUC A06B-6240-H209 Servo Amplifier takes the voltage input from 283 to 339 V DC. It requires an input current of 39 A at 283 VDC. The maximum output voltage is 240 V AC with the power supply of three-phase AC. The operating ambient temperature range is 0 to 55°C. It can handle relative humidity of 90% or less without condensation. The module weighs 8 kg; its dimensions are 364 mm in height, 55 mm in width, and 257 mm in depth. The maximum frequency response can reach up to 550 Hz.

The control modes of this servo amplifier include position control, velocity control, and torque control. In Position Control Mode, the servo amplifier precisely controls the servo motor's position. Velocity Control Mode regulates the speed at which the servo motor operates. In Torque Control Mode, the servo amplifier manages the torque output of the servo motor.

With a CE mark, the servo amplifier complies with the health, safety, and environmental protection standards of the European Union. The Servo Amplifier operates safely with overcurrent and overvoltage protection. Additionally, it has motor thermal protection and emergency stop input, enhancing the amplifier's safety.

Key Features:

The FANUC A06B-6240-H209 provides advanced control algorithms. The amplifier features advanced digital servo technology, ensuring that motion control is precise and rapid. Built-in diagnostic capabilities allow quick issue identification, reducing downtime significantly. The power regeneration circuitry reduces overall energy consumption and minimizes heat generation. The A06B-6240-H209 amplifier is user-friendly, featuring an intuitive interface and comprehensive diagnostic tools that simplify setup and maintenance.

Utility of Servo Amplifier:

This Servo Amplifier Module is used in various CNC series. It is compatible with servo motors, lasers, robots, and ROBODRILL. ROBOCUT wire-cut electric discharge machines use it, too. This servo amplifier can support GE Fanuc PLCs. ROBONANO super Nano machines also utilize this amplifier module.

The FANUC A06B-6240-H209 is vital for running servo motors and CNC machines in the manufacturing industry. It can be used in the automobile and auto ancillary industries. The refrigeration and steel industries also use it. Textile machinery applications use this module, too. It is used in the glass and construction machinery industries.

Frequently Asked Questions:

How should the FANUC A06B-6240-H209 Servo Amplifier Module be mounted?

The FANUC A06B-6240-H209 should be securely mounted in a well-ventilated control cabinet to ensure optimal cooling and protection. Maintain sufficient clearance around the module to allow for proper heat dissipation.

What precautions should be taken while installing the FANUC A06B-6240-H209 Servo Amplifier Module?

Ensure all connections are correctly made, and avoid exposing the module to dust, moisture, and direct sunlight during installation. This ensures the model is protected.

How can you identify and troubleshoot issues with the FANUC A06B-6240-H209 Servo Amplifier Module?

Use the built-in diagnostic capabilities of the FANUC A06B-6240-H209 to identify and troubleshoot issues quickly. This feature helps in the diagnosis of various issues.
