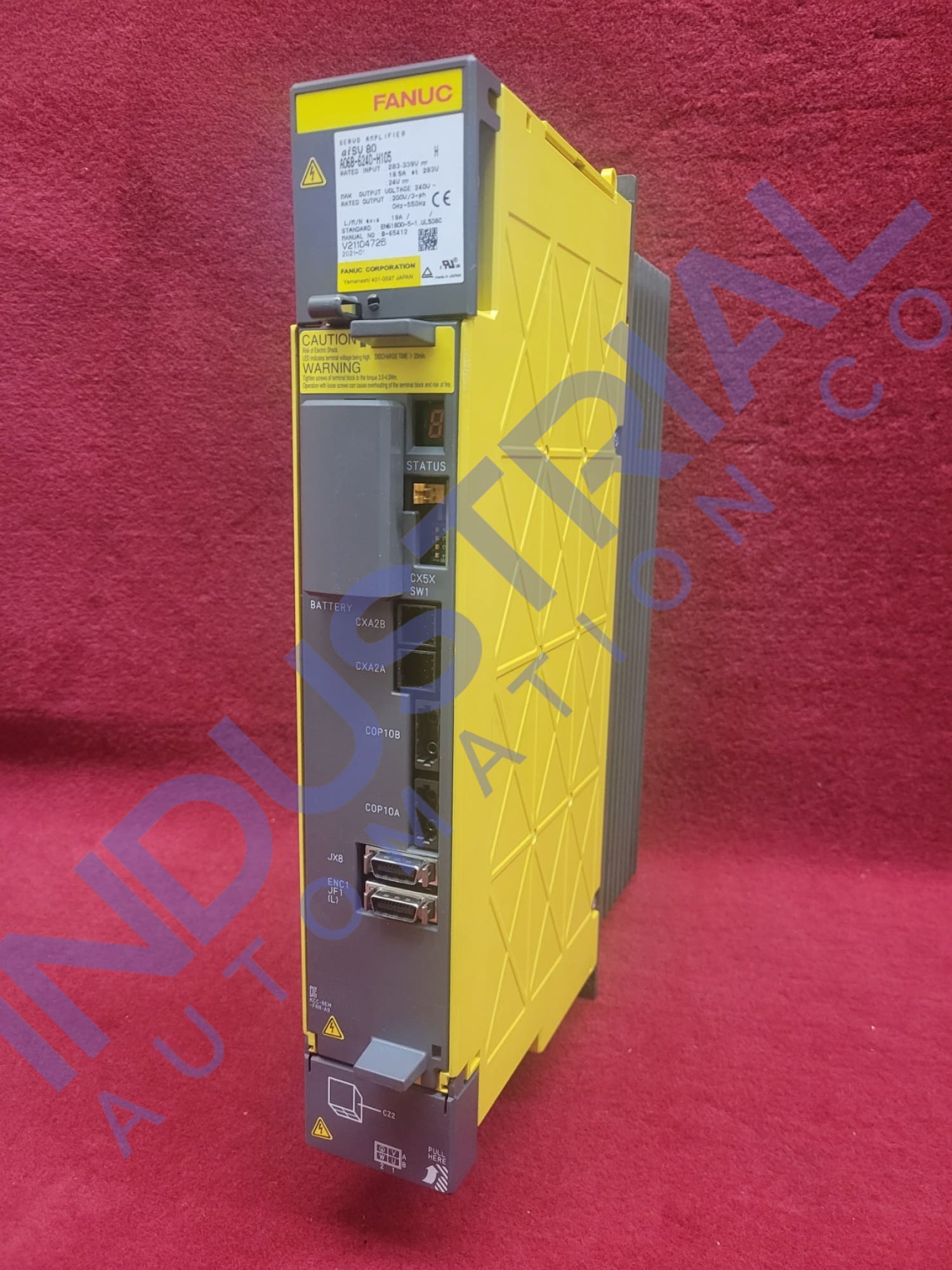

The FANUC A06B-6240-H105 is a single-axis Servo Amplifier Module designed to drive servo motors. This Servo Amplifier is a critical component in the FANUC Alpha I series. It provides advanced features such as digital control and comprehensive protection mechanisms. It is compatible with various FANUC CNC controllers, ensuring optimal performance and energy efficiency in multiple configurations.

Technical Specifications:

FANUC Automation Company manufactures the A06B-6240-H105 Servo Amplifier Module. It operates with an input voltage of 283-339 VDC and an input current of 19.5 A. The amplifier provides the output voltage ranges between 283-340 VAC with an output frequency range of 0 to 550 hertz. It has an axis current rating of 22.5 A.

The FANUC A06B-6240-H105 uses fan cooling and utilizes digital control for precision. Fan cooling maintains optimal operating temperatures, ensuring reliable performance even under harsh conditions. The module weighs 4 kg with dimensions of 380 mm height, 60 mm width, and 272 mm length. It operates from 0 to 55°C and can be stored in temperature ranges from -20 to 60°C. The relative humidity range is 5% to 95% non-condensing.

Key Features:

The A06B-6240-H105 Amplifier module supports absolute and incremental encoders. It is designed for cabinet mounting with an environmental protection rating of IP20. This rating protects against dust and solid objects over 12mm in size. The module includes overload and short circuit protection. It uses the FANUC Serial Interface for communication, and the control type is digital control.

The amplifier is compatible with FANUC CNC controllers and has diagnostic functions, including LED status indicators. These indicators aid in status and fault diagnosis. The high-speed response ensures precise control, and its high-efficiency design reduces energy consumption. The feedback method uses an incremental encoder. This makes the servo amplifier ideal for high-performance applications requiring accurate positioning and speed control.

Safety Precautions:

The FANUC A06B-6240-H105 Servo Amplifier Module must be used cautiously to ensure safe and efficient operation. First, always double-check the specification code to ensure it corresponds to the ordered model. Install a ground fault interrupter to prevent fires and electric shocks. Connect the amplifier's ground terminal and metal frame to a single ground plate to provide proper grounding. Never ground or short-circuit the power source or lines; ensure they are balanced.

This servo amplifier module satisfies the highest automation criteria. Improved safety precautions safeguard the equipment and its surroundings. Install and use the amplifier under conditions that meet the specified temperature and humidity levels, avoiding corrosive or conductive mist and water droplets.

Proper ventilation and grounding are essential during installation. It is advised to perform routine cleaning and inspections for maintenance. The best possible performance is ensured by using trained operators with technical details.

Frequently Asked Questions:

How does the digital control system enhance the functionality of the servo amplifier?

The digital control system of the FANUC A06B-6240-H105 provides high-speed response and precise control over the connected motors.

What types of motors are compatible with the FANUC A06B-6240-H105 Servo Amplifier Module?

This Servo Amplifier is compatible with FANUC Alpha i Series servo motors. It can efficiently control rotary and linear servo motors to control precise motion.

Can the FANUC A06B-6240-H105 Servo Amplifier Module be integrated into existing CNC systems?

Yes, the FANUC A06B-6240-H105 is designed to be fully compatible with FANUC CNC controllers through the FANUC Serial Interface.

Product Specifications Table
