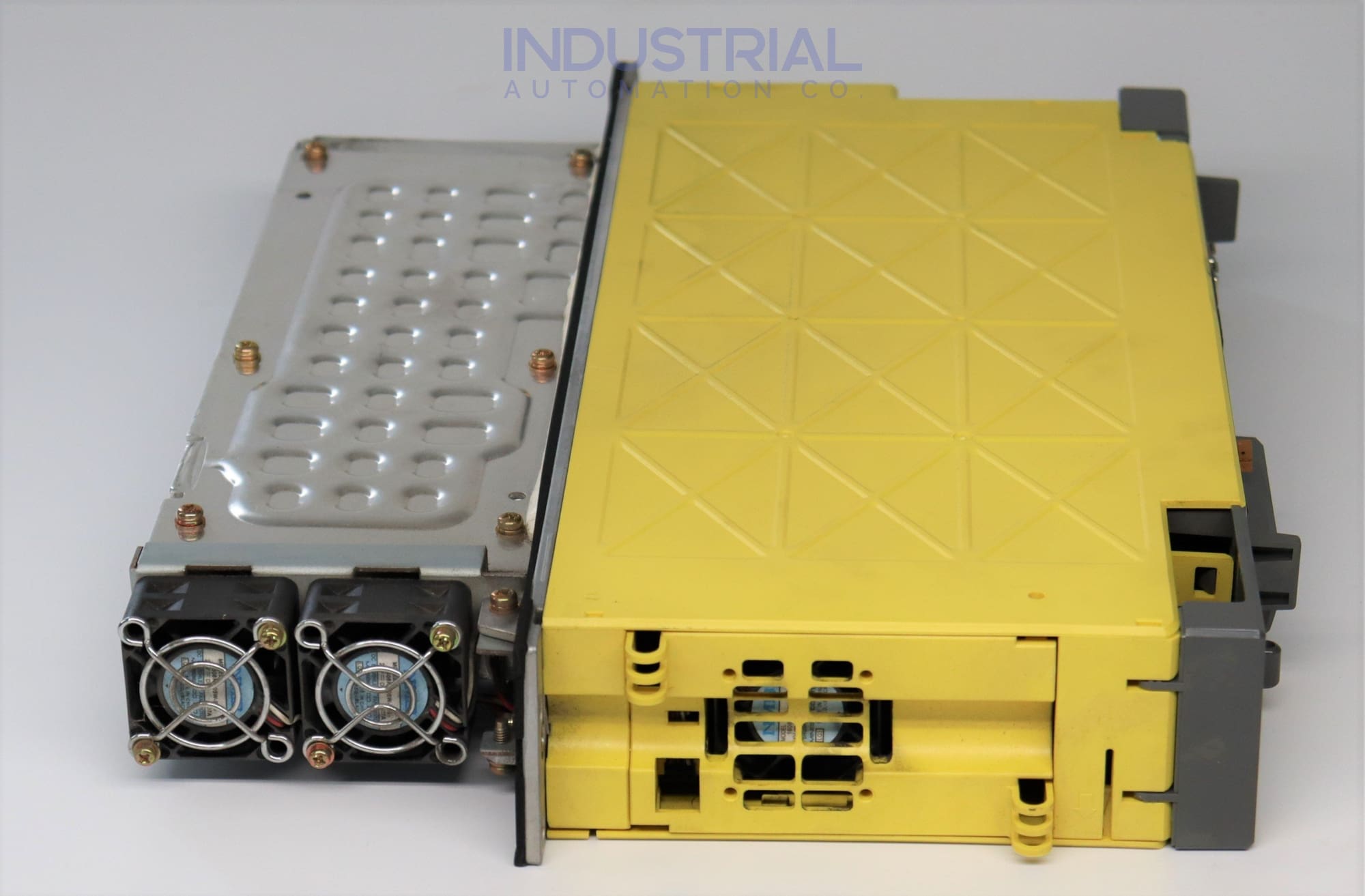

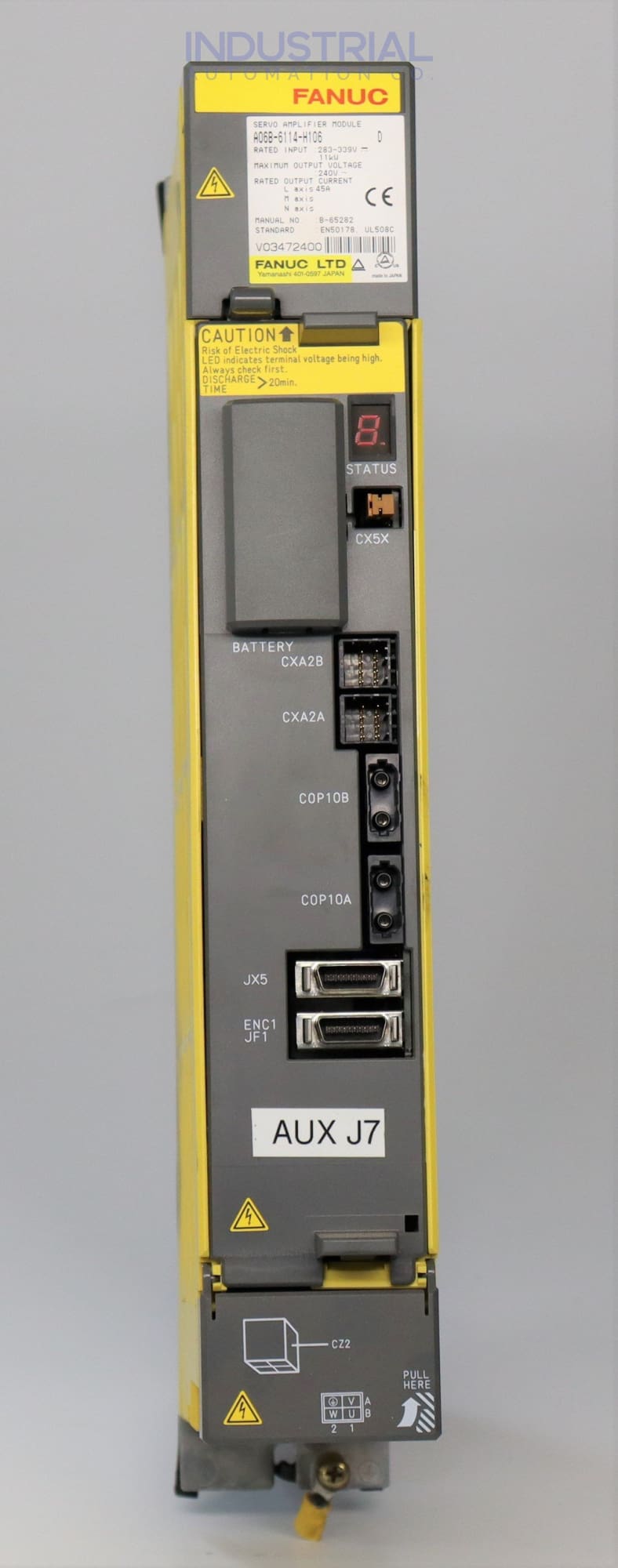

FANUC A06B-6114-H106

FANUC has revolutionized the automation industry with its A06B-6114-H106 servo amplifier module. In particular, its SVM1-160i variant provides a power boost to various alpha servo motors - making them more efficient and reliable than ever before!

The A06B-6114-H106 servo amplifier is designed to withstand harsh industrial conditions, providing highly accurate and reliable motion control for various industries.

Featuring an impressive 11 kW power capacity, it operates with 200V input voltage and outputs up to 240V. It boasts 160A in the current limit as well as 45A rated output current - all powered by just 17W total heat dissipation!

The module has a compact and rugged design, measuring 80 x 325 x 242 mm and weighing 4.4 kg. It is easily replaceable and compatible with various servo motors, giving it flexibility and versatility in various applications.

FANUC's A06B-6114-H106 servo amplifier module is highly adaptable and capable of operating in a wide range of temperatures (0°C to 55°C) and humidity levels (10% - 90%). No derating occurs even at altitudes as high as 1000 meters.

To protect from overheating, the unit has integrated safety measures €“ if the temperature exceeds 40°C, an internal cooling fan will automatically activate for optimal protection. Additionally, ensure your setup shields against any electrical interference to enjoy consistent performance!

The power supply voltage should be within the range of 170V to 240V AC, and the input frequency should be within 50Hz to 60Hz. Avoid any voltage or frequency fluctuations to maintain the amplifier's optimal performance.

Installing and transporting the FANUC A06B-6114-H106 servo amplifier module requires careful handling to ensure the proper functioning of its delicate electronic components.

Check that the power supply voltage and frequency are within the given limits. Ensure proper wiring connection according to the instructions and directions in the manual to prevent short circuits or damage to the equipment. Mount the amplifier in a stable and secure location to avoid any vibration or movement that could harm the device.

To prevent damage, transport it between -20°C and 60°C and package it with protective packaging or a suitable case that can withstand impacts and vibrations. Also, transport the amplifier in an upright position. Additionally, be careful when connecting the power supply, control cables & motor and mounting securely; these steps are necessary for optimal performance while avoiding overheating due to insufficient ventilation.

Finally, ESD protection should always remain a top priority during installation and transportation so the device remains safe from static electricity harm!

Before turning on the power, ensure you securely connect the cables that connect the robust magnetic cabinet and amplifier, power lines, and power supply lines. Additionally, ensure that the magnetic power doors are grounded.

Do not expose the A06B-6114-H106 amplifier module to corrosive or conductive droplets. Ensure the equipment is grounded correctly to prevent electric shock and protect the device from electrical surges.

To ensure proper installation and operation of the module, follow the installation instructions and wiring diagrams provided in the manual. Only qualified personnel with appropriate training and experience should perform any modifications or repairs.

It should not be opened or disassembled to avoid injury or damage to the module or its components unless maintenance or repair is required.
