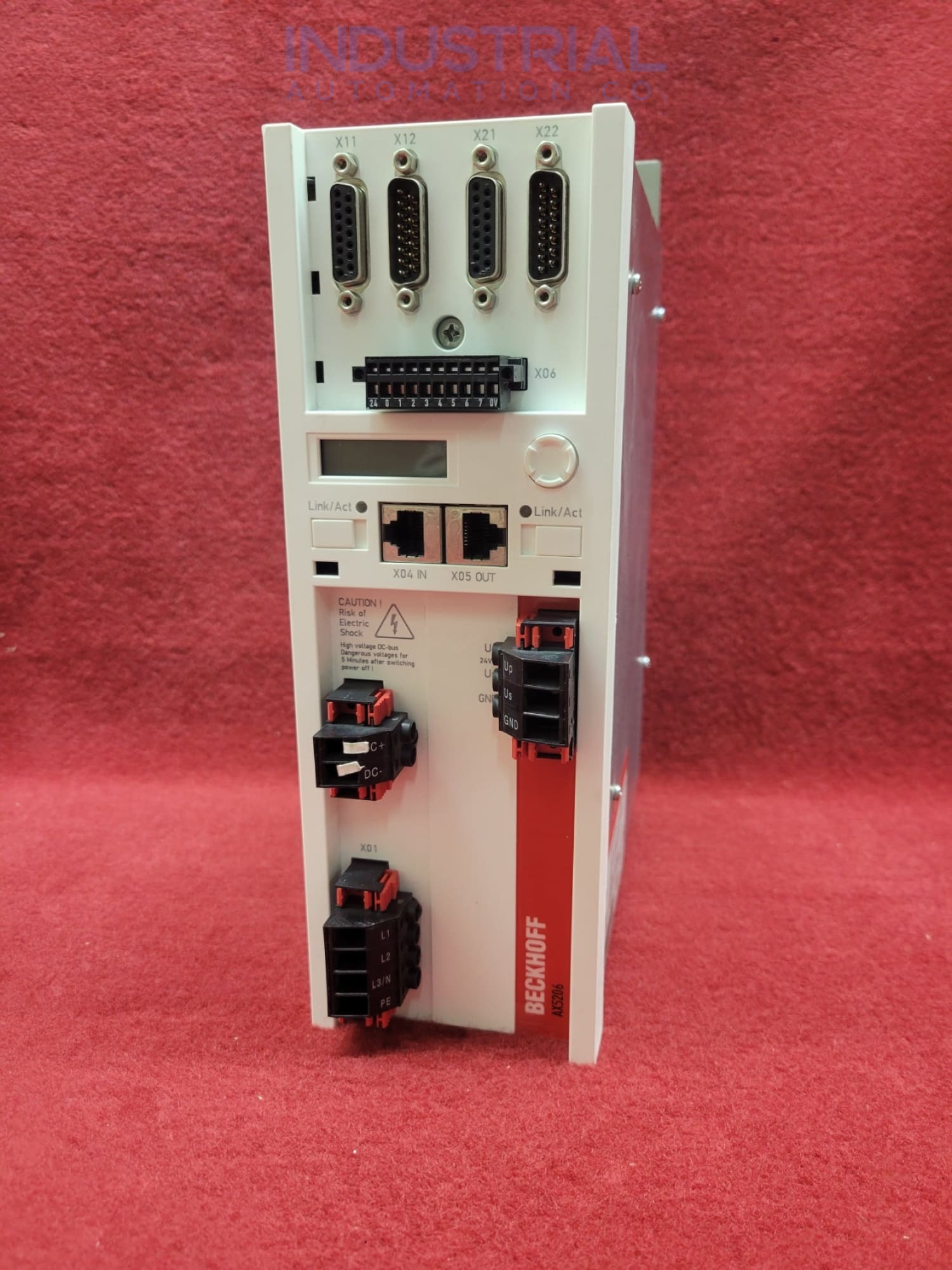

The Beckhoff AX5206-0000-0202 is an advanced dual-channel digital servo drive for industrial applications. It offers easy integration, robust performance, scalable motor current measurements, active DC-link energy management, and compatibility with SinCos, EnDat 2.1, and BiSS B feedback standards.

Technical Specifications:

The Beckhoff AX5206-0000-0202 servo drive operates within a 3 x 100 to 480 V AC ±10% range, ensuring adaptability to various industrial power settings and consistent performance across different regions and electrical standards. At its core, the AX5206-0000-0202 features a DC link voltage reaching a maximum of 875 V DC. This high DC link voltage capability is crucial for maintaining efficient energy conversion and management within the drive, particularly during dynamic and high-demand operations.

Each channel of the AX5206-0000-0202 is rated for an output current of 6 A. This rating signifies the drive's ability to deliver consistent and robust power to connected motors, ensuring precise and controlled performance.

The Beckhoff AX5206-0000-0202 supports single-phase and three-phase power inputs, enhancing its versatility and applicability in various industrial environments. The drive can operate at 100-240V AC for single-phase input.

When configured for three-phase power input, the AX5206-0000-0202 can handle a voltage range of 100 to 480 V AC. This capability makes the drive highly adaptable to various industrial power systems, ensuring compatibility with international voltage standards. The drive is rated for a current of 17.1 amps when operating on a three-phase power supply. This high current rating underscores the drive's capacity to deliver substantial power to connected motors, ensuring they operate efficiently under varying load conditions.

The drive's 13.2-amp peak current capacity effectively handles transient loads. An optional external brake module with a 250 W braking resistor can be added to the AX5206-0000-0202, enhancing energy dissipation during deceleration for smooth and safe operation in high-performance applications.

Operating Conditions and Safety Compliance:

The AX5206-0000-0202 servo drive features an IP20 protection rating, meaning it is protected against solid objects up to 12mm in size but is not safeguarded against water.

This drive has earned EAC, CL, and cULus certifications, underscoring its compliance with various international standards and reliability across different regulatory environments. The AX5206-0000-0202 is designed to operate efficiently within a temperature range up to a maximum of 55°C. This capability ensures that the drive can function under higher temperature conditions commonly found in industrial settings without compromising performance.

Enhanced Safety Features of the Beckhoff AX5206-0000-0202:

The AX5206-0000-0202 servo drive has numerous safety features, including Safe Torque Off (STO), overvoltage protection, and the advanced TwinSAFE safety function. Additionally, optional safety functions can be integrated to prevent any accidental restart of the drive axis, further enhancing the safety and reliability of this drive in industrial applications.

Frequently Asked Questions:

What communication protocols does the AX5206-0000-0202 servo drive support?

The AX5206-0000-0202 servo drive supports the EtherCAT system bus and SERCOTM profile, adhering to the IEC 61800-7-204 (SoE) standard. This enables high-performance, real-time communication and seamless integration with PC-based control technology.

What is the DC-link capacitance of the AX5206-0000-0202, and why is it important?

The AX5206-0000-0202's 470 µF DC-link capacitance stabilizes voltage, absorbs spikes, and ensures smooth power delivery to the motor, maintaining performance and protecting the drive from transient disturbances.

What hardware and firmware versions does the AX5206-0000-0202 use?

The AX5206-0000-0202, with hardware version 2.0 and firmware version 2.10 or higher, incorporates the latest technological advancements, ensuring enhanced functionality, improved performance.
