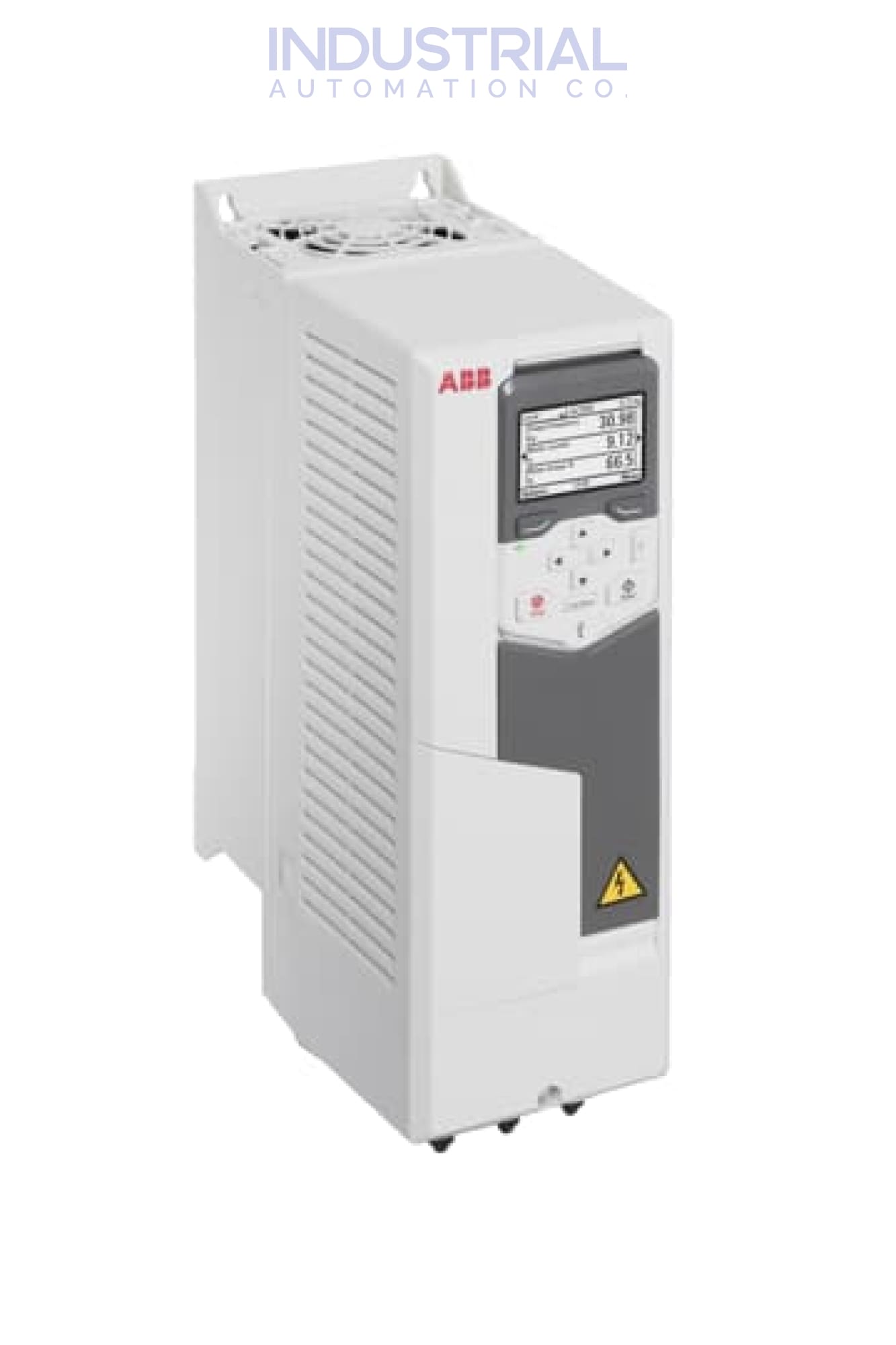

ABB ACS580-01-034A-4

The versatile ACS580-01-034A-4 VFD from ABB packs a formidable punch - a reliable choice for all power needs. Its purpose is to manage and adjust the speed of AC motors. Moreover, the VFD has a PID controller that regulates motor speed according to external signals, such as temperature or pressure sensors.

The drive is appropriate for industrial applications with medium-sized motors because it operates on a three-phase power supply with a 380 - 480 V AC voltage range. The VFD has a power rating of 22 kW (30 HP) and a current capacity of 48.6 A. It can generate an output current of up to 34 A.

The model ACS580-01-034A-4 has modest dimensions, making it suited for wall-mounted installations. The device's height is 483 mm (19 inches), width is 247 mm (9.72 inches), and depth is 240 mm (9.45 inches). The VFD also has a heat dissipation fan built in, with a heat dissipation capacity of 446 W.

The nominal current output of the R3 frame size drive is 38 A, with a maximum fuse current of 60A. The fuse voltage rating of the North American type of drive is 600 V. The model (ACS580-01-034A-4) has a flow rate of 179 m3/h and a noise level of 76 dB. The resistance range of the drive is 10 to 27 ohms.

Designed to withstand various environmental conditions, this VFD boasts an impressive operating temperature range of -10°C to +50°C (14°F to 122°F).

With a vibration limit of 1.5 mm/s RMS at 1-10 Hz and 0.75 g at 10-200 Hz, the model ACS580-01-034A-4 ensures reliable operation even in applications with vibrations.

The VFD can function at 1000 meter height without derating, but higher altitudes may require reducing the power rating. Furthermore, this drive can operate seamlessly in 5 €“ 95% humidity conditions without accumulating moisture.

Proper attention is required to avoid device damage to successfully install and transport the ACS580-01-034A-4 variable frequency drive (VFD). The (VFD) must be stored and transported within an ambient temperature limit of (-40°F to +158°F). This temperature range must be adhered to for maximum efficiency and longevity of the VFD. It will help protect it against extreme temperatures that may damage the device.

Mount the VFD on a vibration-resistant surface sturdy enough to handle its weight. Choose a well-ventilated installation location that allows the VFD to dissipate heat effectively. Follow the Manufacturer's instructions to correctly connect the power supply and motor cables since faulty connections can lead to equipment damage and safety hazards.

Adequately ground the VFD (ACS580-01-034A-4) and install the recommended fuses per the Manufacturer's instructions. It will ensure safe operation.

Before performing any maintenance or servicing on the VFD, it's essential to disconnect the power supply to prevent accidents such as electric shock or other injuries.

When handling the VFD (ACS580-01-034A-4), wear appropriate personal protective equipment (PPE). Safety glasses, gloves, and insulated footwear can protect against hazards like sharp edges, electrical shock, or accidental contact with rotating machinery.

To prevent electrical hazards, install and ground the VFD correctly. Proper grounding can protect against electric shock, while correct installation can prevent equipment damage or failure.

Follow the Manufacturer's instructions for using and maintaining the ACS580-01-034A-4 VFD to ensure safe and reliable operation while extending the device's lifespan.
